PURECLEAN 24 M. BLUE
Product No.: 763532005

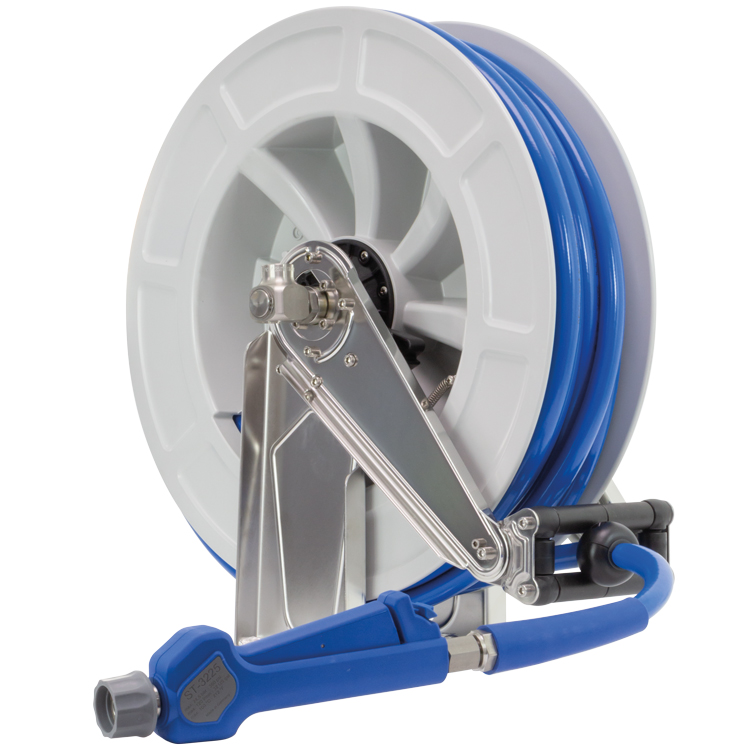

PUReClean365+® - 40 food hoses with automatic hose reel and ST-3225 - Food Special Set
Hose reel type: 532.02
For hoses (outer diameter 18.5 mm = 28 m / 20.0 mm = 26 m / 22.0 mm = 24 m
Colour: Grey
Inlet: 1/2" F
Outlet: 1/2" F
Nominal diameter: 12
Pressure: 300 bar (in combination with this set max. 24.5 bar)
Temperatur: 90°C
Weight: 19.0 kg (without hose)
Material: Base frame stainless steel V2A / AISI 304. Reel made out of especially impact-resistant ABS plastic.
With automatic spring return and strain relief.
Equipped with a stainless steel swivel ST-322.
Dimension 1: 560 mm
Dimension 2: 510 mm
Dimension 3: 153 mm
Dimension 4: 203 mm
Spray gun ST-3225 with LTF technology:
Professional flat spray gun ST-3225 for the food industry with progressive closing system and coupling ST-3100
Inlet: 1/2" F
Outlet: Coupling ST-3100
Type: With locking in opened position
Pressure: max. 24.5 bar
LTF: Low Trigger Force 90 % reduced holding force and 40 % reduced trigger force against usual market guns.
PUReClean365+® 40 - high pressure food hose:
Outlet: 1/2" M
Nominal diameter: 12
Max. 45 bar / 70°C (in combination with this set max. 24.5 bar)
Lenght: 24 m
Colour: Blue
Conform to EG-regulation Nr. 1935/2004 nd Nr. 10/2011
Field of application: foam hose and pre-spraying hose in the food industry. Suitable for contact with liquid food products. Suitable for water and water mixes of usual cleaning detergents
PVC hose with three layers and a smooth surface
Increased 1-layer rot-proof textile mesh
About 20 % lighter and more flexible than comparable hose types
