Tehniskie dati: spriegums 230V; pieslēguma jauda 3.2 kW; barošanas spriegums 216-244 V, 50 Hz; barošanas rozetes nom. mazāk par 15A; maks. spiediens 110 bar; maks. ūdens patēriņš 1 l/min; sildāmās ierīces jauda 60 kW; izmēri 1285x690x835 mm.

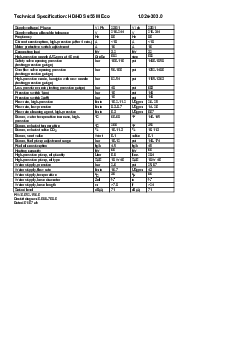

Specifikācija
Supply voltage, allowable tolerance - V 216-244
Frequency - Hz 50
Current consumption, high-pressure (after 4 min.) - A <15
Motor protective switch adjustment - A 16
Connecting load - kW 3.2
High-pressure nozzle (US-gpm at 40 psi) - Größe 052
Safety valve opening pressure (testing pressure gauge) - bar 100-110
Overflow valve opening pressure(testing pressure gauge) - bar 96-100
High-pressure mode, handgun with new nozzle(testing pressure gauge) - bar 82-94
Low-pressure mode (testing pressure gauge)- bar 45
Pressure switch 1(on) - bar 10
Pressure switch 2(off) - bar 10
Flow rate, high-pressure - l/min 10.2-11.2
Flow rate, low pressure - l/min 5.3-5.7
Flow rate cleaning agent, high-pressure - l/min 0.3
Burner, water temperature increase, highpressure - °C 60-65
Burner, exhaust temperature - °C 200
Burner, exhaust value CO2 - % 10-11.3
Burner, soot value - Wert 0-1
Burner, fuel pump adjustment range - bar 10-12
Fuel oil consumption - kg/h 4.9
Heating capacity - kW 60
High-pressure pump, oil quantity - Liter 0.8
High-pressure pump, oil type - SAE 15 W 40
Water supply, pressure - bar 2-6
Water supply, flow rate - l/min 16.7
Water supply, temperature - °C 30
Water supply, hose diameter - in ¾“
Water supply, hose length - m >7.5
Sound level - dB(A) 71
