STH 13.84 W
K1335204 (1.335-204.0)

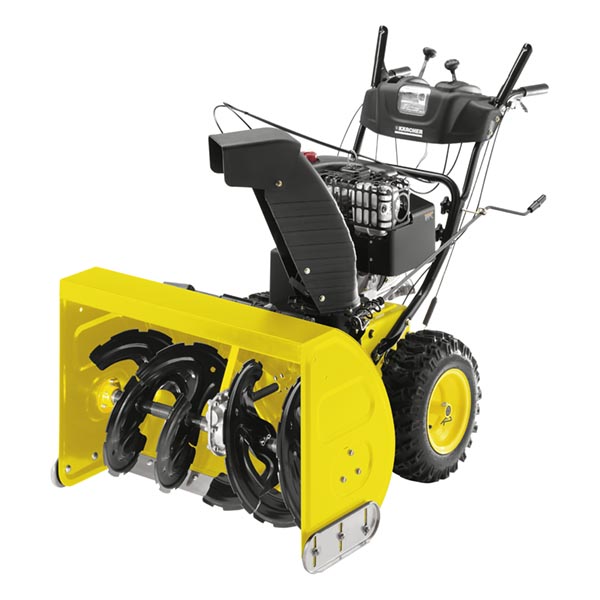

Snow thrower with working light, electric start (230V) and adjustable skids. Angle of discharge chute adjustable from handle, serrated auger. Dual-stage snow throwing system, SnowHog tyres, manual starter handle suitable for use with mittens.
Specification
Technical data
Max. area performance m/h2500
Clearing width (cm )84
Intake height (cm )56
Auger diameter (cm )40
Max. throwing distance (m)up to 8
Chute rotation ()190
Impeller diameter, approx. (cm )-
Drive speeds 6 forw. / 2 reverse
Wide wheels / tracks (inch)6.5
Diameter wheels / tracks (inch)16
Engine type 4-stroke Briggs&Stratton
Power rating (hp)9.7 / 13.2
Fuel tank (l )7.6
theor. capacity (t/h)-
Weight (kg)135
Dimensions (L x W x H) (mm)1600 x 950 x 1150
