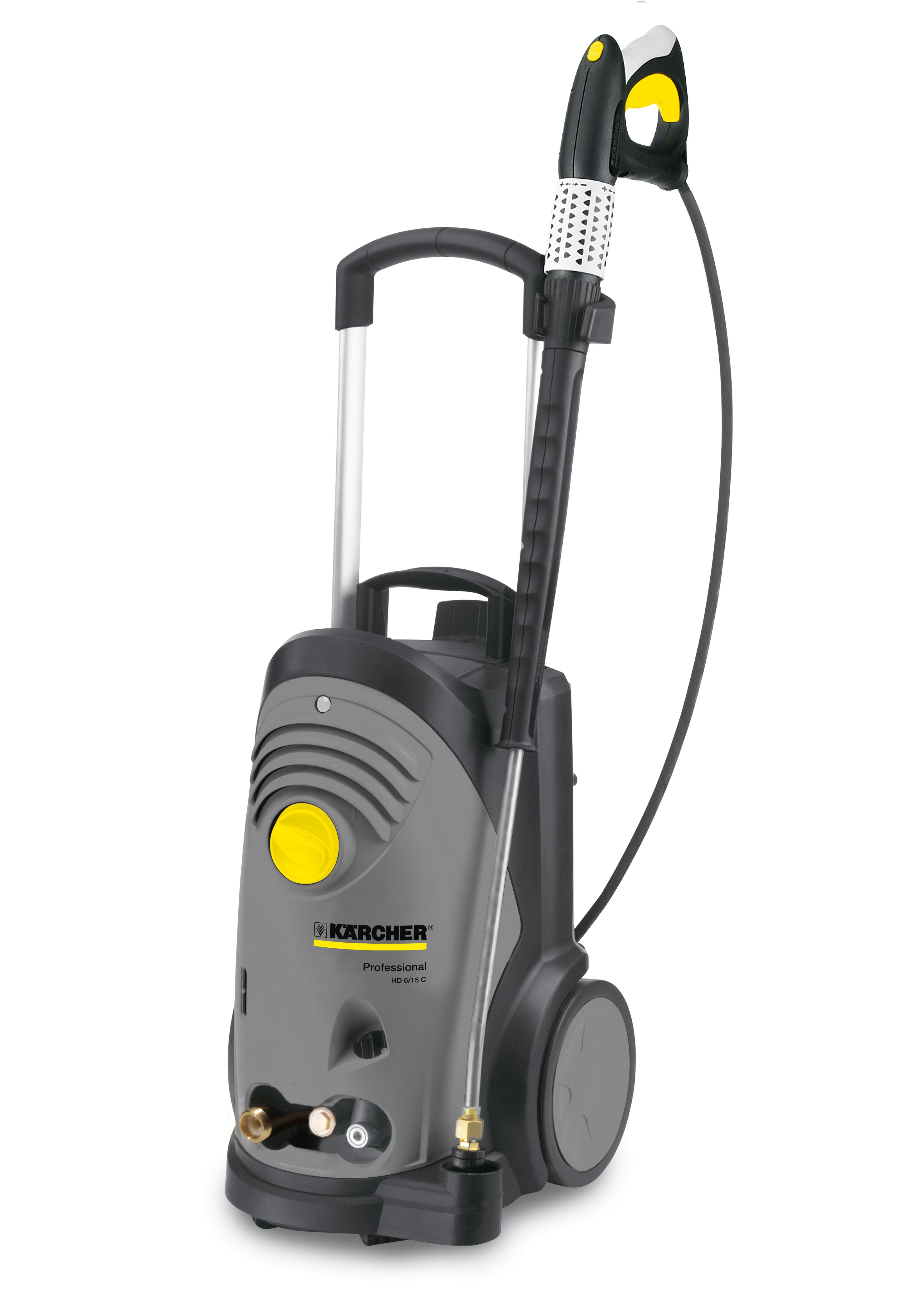

The upright HD 7/18 C boasts impressive mobility, compactness and a height-adjustable shaped aluminium push handle. The advantage of the push handle is that it can easily be adjusted to the operator's height without using tools.
In the extended position, the unit's generous stowage facilities ensure that accessories are always ready to hand and put away safely. When retracted, this handy unit can be stowed easily in any estate care or service vehicle.
The washer boasts familiar KRCHER features such as a full shock-resistant plastic covering that protects the high-pressure pump and the motor from damage and soiling. Other very good features are an electric cable retractor (with plug lock) and a nozzle compartment arranged practically on the back of the unit.
The cleaner comes with a three-way nozzle that enables the water jet to be adjusted quickly and easily. You can choose between a high-pressure pencil jet, a high-pressure fan jet (25) and a low-pressure fan jet. The low-pressure fan jet (40) is used for dispensing cleaning agent. The cleaning agent metering valve enables cleaning agent to be mixed continuously with the high-pressure jet.
The large-volume oil container, which is very important for ensuring that the unit is always adequately lubricated, can be checked very easily from outside through an oil level inspection glass.
The three-piston axial pump with stainless steel pistons and a brass cylinder head guarantees a long service life and low susceptibility to faults. The special feature of this newly developed pump is that both the water inlet and the high-pressure outlet are made of brass, which makes them highly resistant to fracture and corrosion.
Specification
- Connected load (kW) - 4.7
- Water flow rate (l/h) - 700
- Operating pressure of water (using standard nozzle) (bar) - 175
- Max. operating pressure for working with steam (using steam nozzle) (bar) - 215
- Length (mm.) - 375
- Width (mm.) - 360
- Height (mm.) - 935
- Current frequency (Hz) - 40
- Voltage (V) - 400
- Weight netto (kg.) - 26.501
- Weight brutto (kg.) - 33
