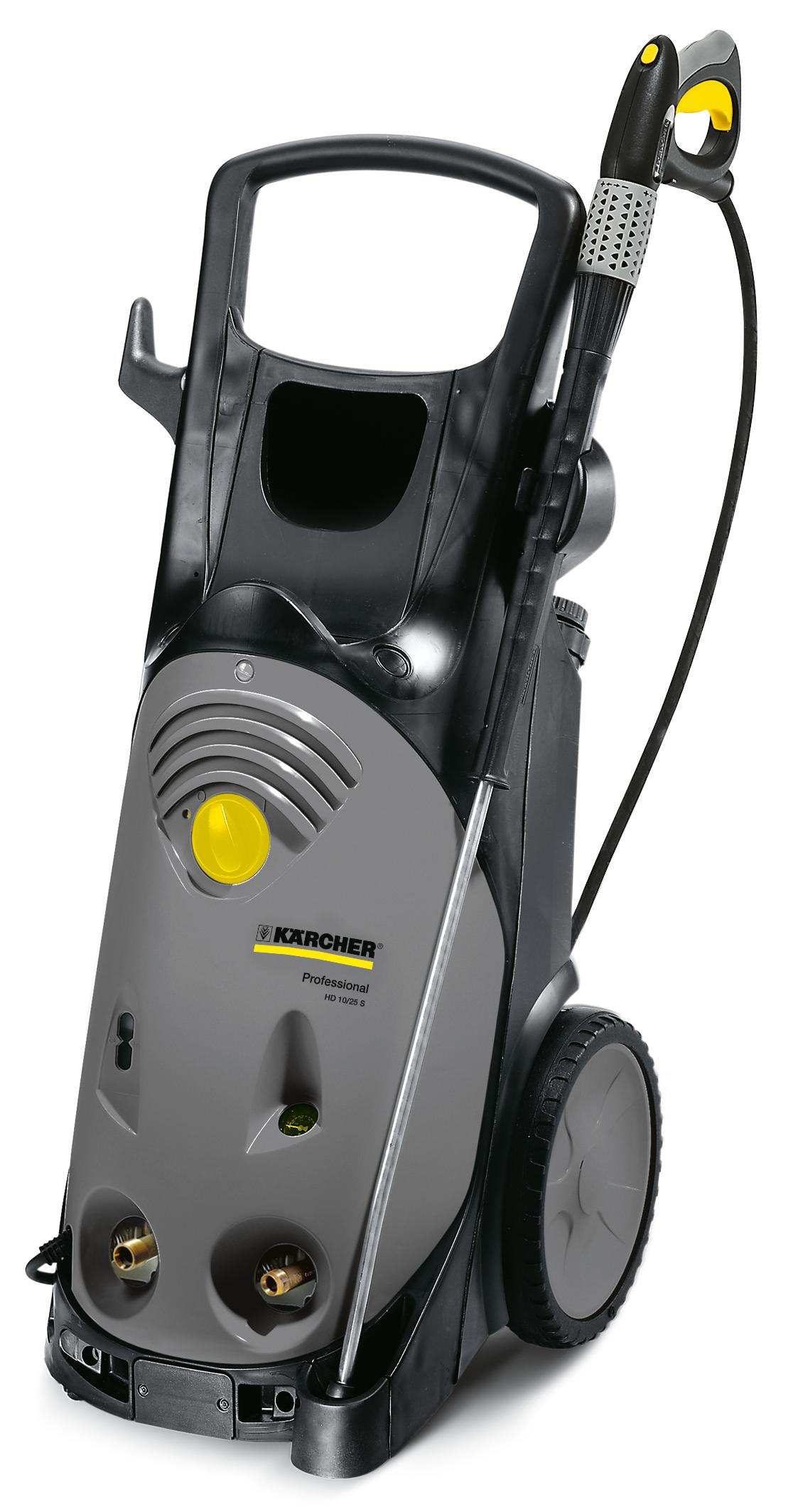

HD 10/25-4S Plus
K1286200 (1.286-200.0)
Mains supply:
-Supply voltage / phases [V / Ph] 400/3
-Voltage tolerance [V] 376-424
-Frequency [Hz] 50
-Connection power max. [kW] 9,2
Electro motor:
-Current pickup, full load (after 5 min) [a] <16 ,5
-High-pressure pump oil volume [l] 1,1
-High-pressure pump oil type [type] SAE 90
-Feed pressure water [MPa] 27,5
-min. feed water volume [I/h] 1200
-max. feed temperature water [C] 60
-High pressure nozzle (US-gpm at 40 psi) [US-gpm] 047
-Flow rate, full load Pressure water[I/h] 905-990
-Flow rate, full load Suction water [I/h] 885-980
-delivery servo press [I/h] 480-515
-Detergent 1 flow rate [I/h] >40
Specification
Technical data
- Length (mm.) - 1190
- Width (mm.) - 560
- Height (mm.) - 605
- Weight netto (kg.) - 67.95
- Weight brutto (kg.) - 75
