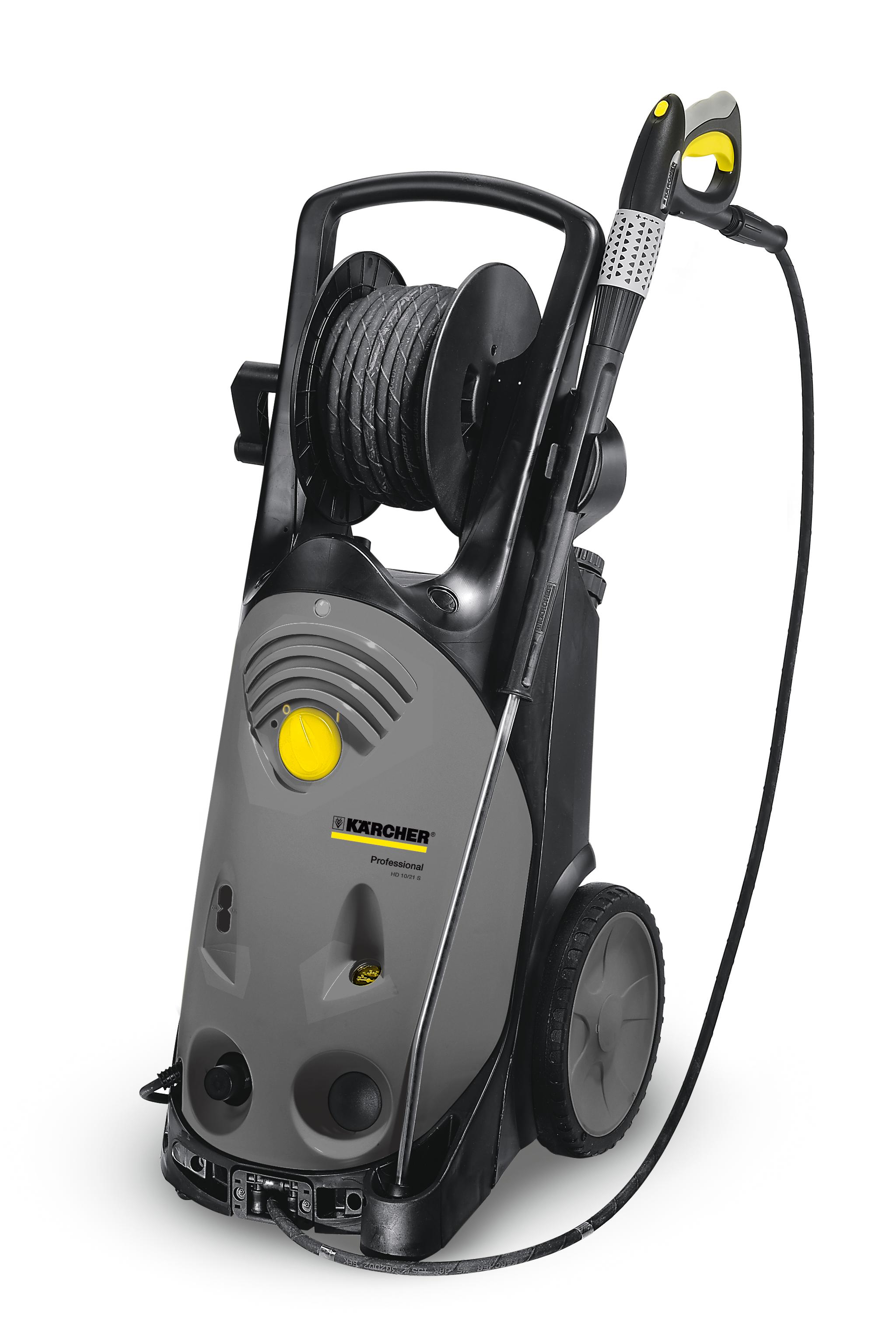

HD 10/21-4 S *EU-I
K1286300 (1.286-300.0)
Mains supply:
-Supply voltage / phases (V / Ph) 400/3
-Voltage tolerance (V) 376-427
-Frequency (Hz) 50
-Connection power max. (kW) 8,0
Electro motor:
-Current pickup, full load (after 5 min) (A) <13
-Motor protection switch Adjustment valueEinstellwert (A) 15
-High-pressure pump oil volume (l) 1,1
-High-pressure pump oil type (type) SAE 90
-Feed pressure water (MPa) 23,1
-min. feed water volume (I/min) 1200
-max. feed temperature water (C) 60
-High pressure nozzle (US-gpm at 40 psi) (US-gpm) 052
-Flow rate, full load (Pressure water) (I/h) 900-995
-Flow rate, full load (Suction water) (I/h) 890-980
-delivery servo press (I/h) 430-470
-Detergent 1 flow rate (full load) (I/h) >40
