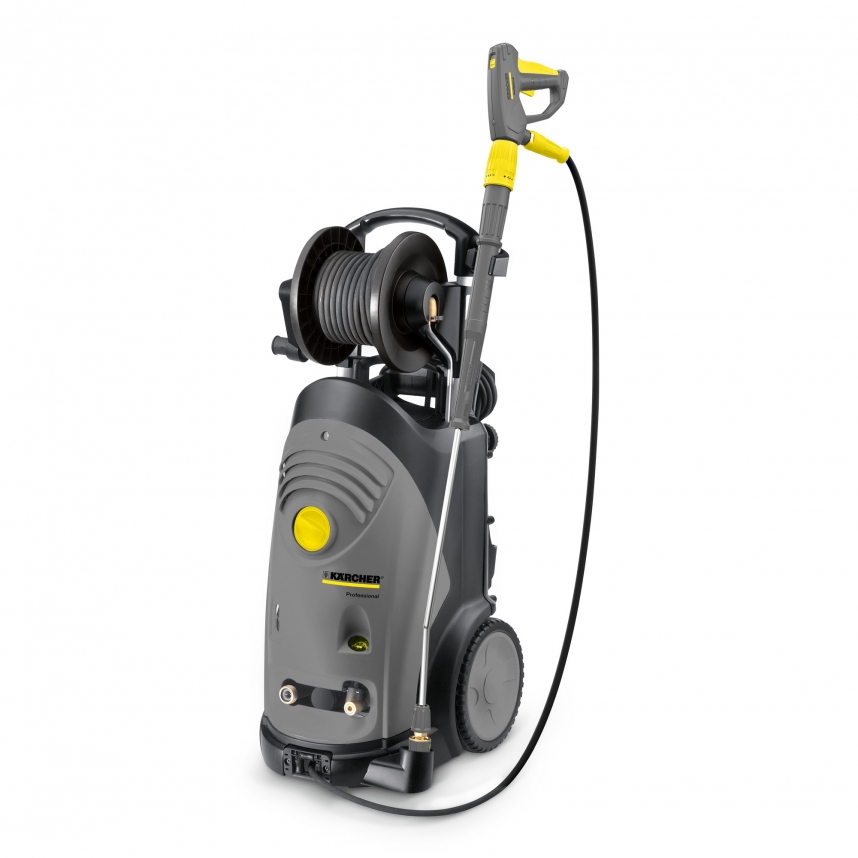

High press cleaner HD 6/16-4 MX Plus
K1524904 (1.524-904.0)
HD 6/16-4 MX: powerful, mobile high-pressure cleaner with a 4-pole, low-speed AC motor, pressure switch control, rotatable spray lance and pivoting pressure hose. Water flow and working pressure can be conveniently controlled via Servo Control directly on the spray gun. The aluminium push handle guarantees easy manoeuvrability and can also be used to store accessories. Thanks to a quick-change system, the SwitchChem cleaning agent dosing system allows long, flexible operating times, as well as the use of two different cleaning agents. The EASY!Force high-pressure gun and EASY!Lock quick-release fasteners ensure effortless working and time-saving set-up and dismantling: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. The robust three-piston axial pump with brass cylinder head guarantees a long service life.
Spray gun, EASY!Force
High-pressure hose, 15 m
Spray lance, 1050 mm
Triple nozzle (0/25/40), Manual
Dirt blaster
Integrated pressure hose reel
Pressure cut-off
Servo Control
Supply voltage (Ph)1 / 230 / 50
Flow rate (l/h)230 - 600
Working pressure (bar/MPa)30 - 160 / 3 - 16
Max. pressure (bar/MPa)190 / 19
Connection load (kW)3.4
Weight (kg)50
Dimensions (L W H) (mm)467 x 407 x 1010
Specification
Technical data
- Connected load (kW) - 3.4
- Water flow rate (l/h) - 600
- Length (mm.) - 1132
- Width (mm.) - 468
- Height (mm.) - 525
- Weight netto (kg.) - 45.2
- Max.water feed pressure (bar) - 190
- Weight brutto (kg.) - 50
