HD 7/17 M St
K1151950 (1.151-950.0)
ADD TO CART
966.-

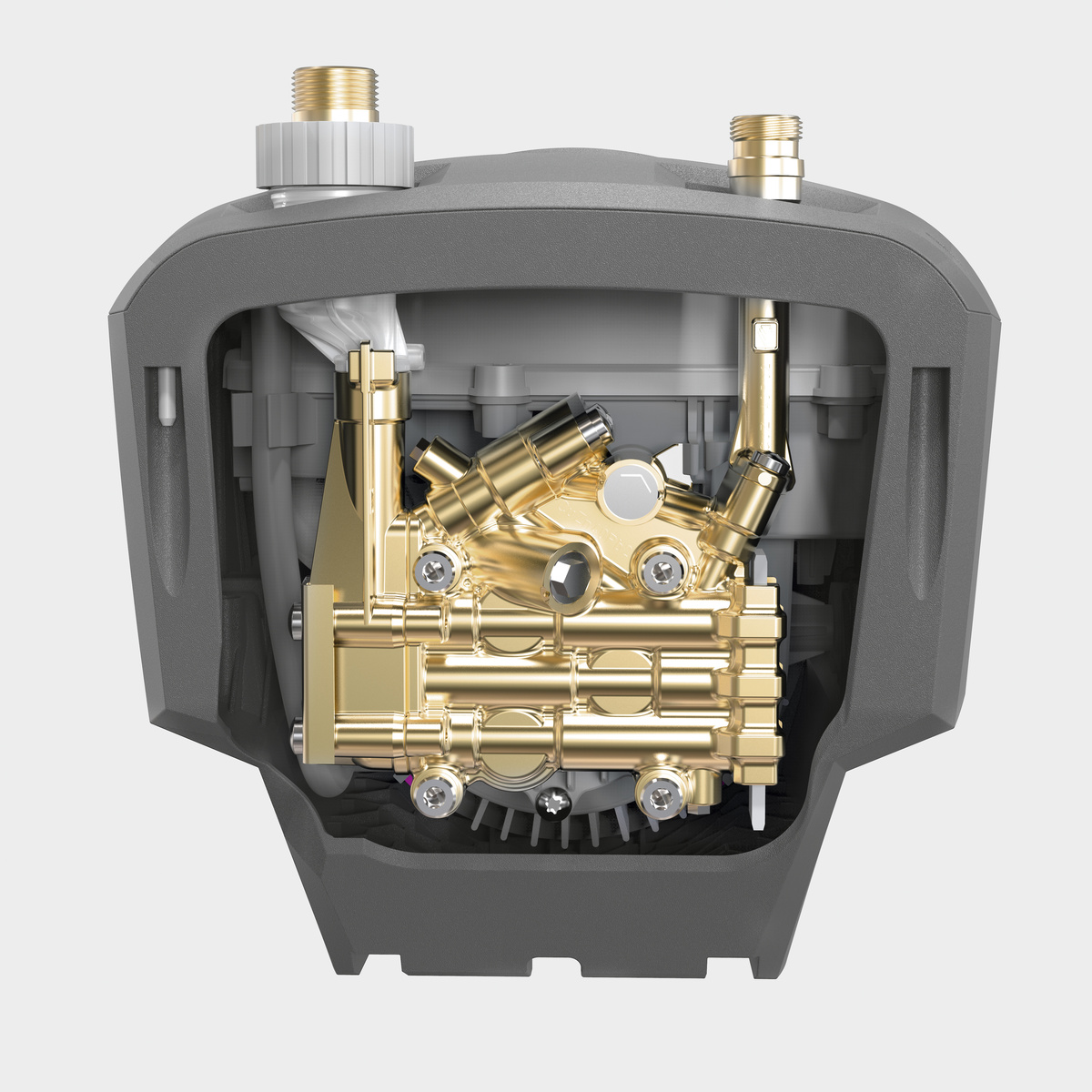

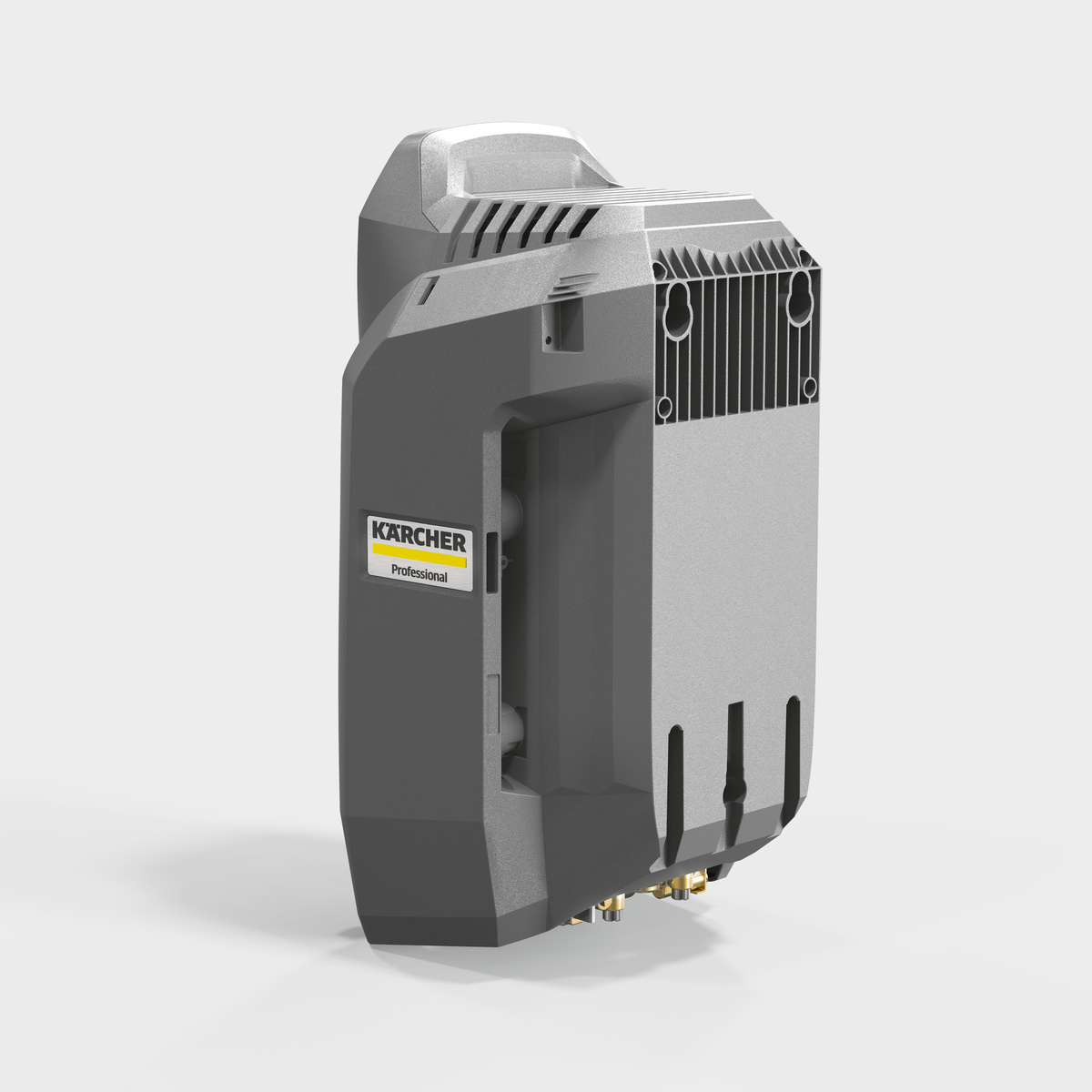

HD 7/17 M PU pump unit with powerful and robust 3-piston axial pump with hardened stainless steel pistons, three-phase motor and wall mount for stationary use.
Technical data
Current type (Ph/V/Hz)3/400/50
Flow rate (l/h)700
Working pressure (bar/MPa)170/17
Max. pressure (bar/MPa)255/25.5
Inlet temperature (C)60
Connection load (kW)4.2
Power cable (m)5
Cleaning agent tank-
Weight (with accessories) (kg)23.2
Dimensions (L_W_H) (mm)290 x 300 x 565
Specification
Technical data
- Length (mm.) - 599
- Width (mm.) - 448
- Height (mm.) - 405
- Weight netto (kg.) - 23.2
- Weight brutto (kg.) - 25.7
