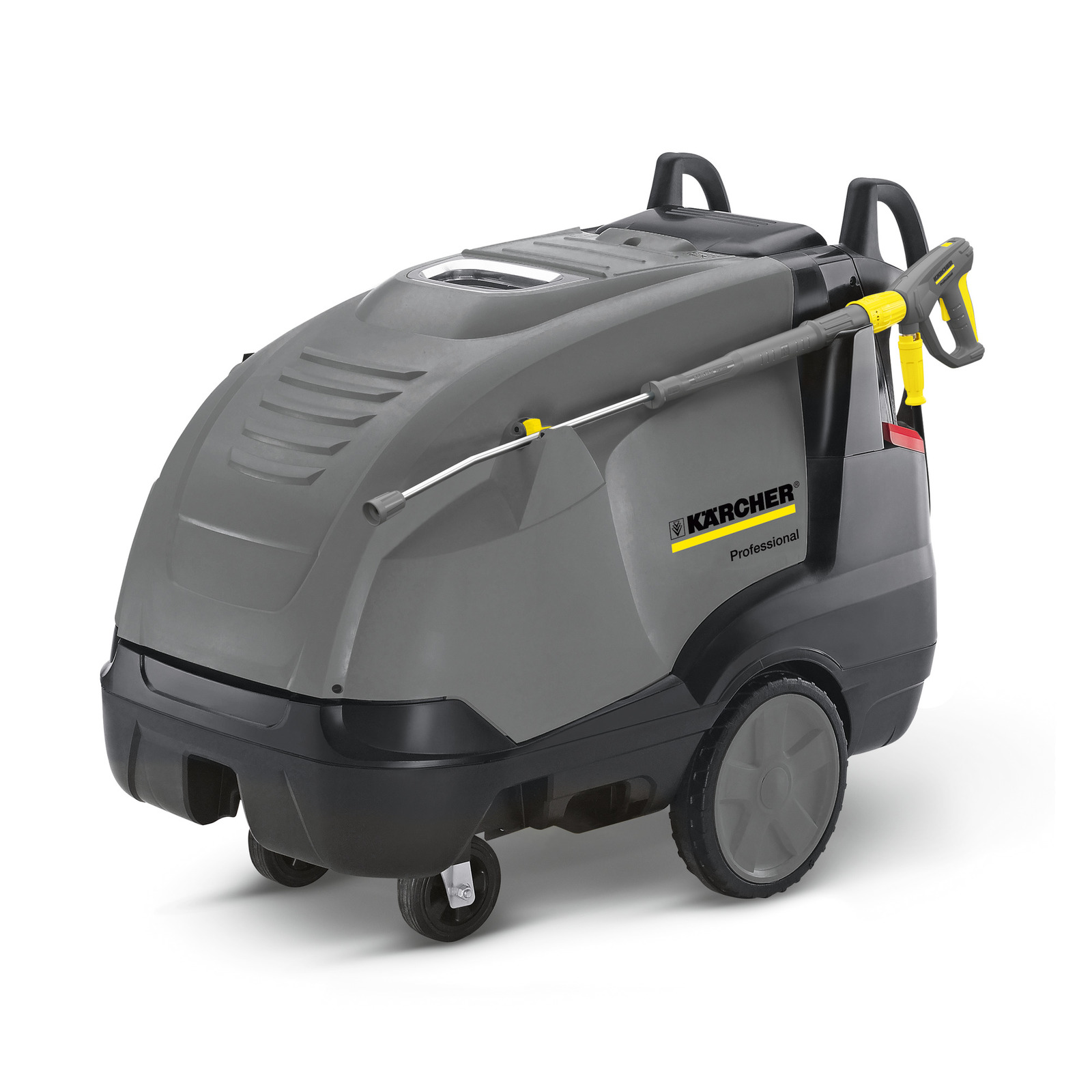

The powerful HDS 12/18-4 S hot water high-pressure cleaner offers a high flow rate and optimised burner engineering for economical operation.
HDS 12/18-4 S: this entry-level machine in the Super class of Krcher hot water high-pressure cleaners is characterised by a high water flow rate, meaning that it can even be operated with a second spray lance. The EASY!Force HD trigger gun uses the recoil force of the high-pressure jet, thereby reducing the holding force for the operator to zero. The high-pressure cleaner is intuitive to operate and transport, and thanks to the eco!efficiency mode, optimised burner engineering and precise cleaning agent dosing, it is also highly efficient and environmentally-friendly. The patented nozzle technology, 3-piston axial pump with ceramic pistons and the turbo blower, among other features, ensure an outstanding cleaning performance, while operational safety is guaranteed at all times by precise exhaust monitoring. The robust, corrosion-resistant chassis can also withstand tough applications easily and is simply and conveniently constructed. This allows easy access to all of the important components and ensures that operating data can always be retrieved easily.
High efficiency
In the eco!efficiency mode the machine operates in the most economical temperature range (60C) - with full water flow.
The burner cycles are optimised to reduce fuel consumption by 20% compared to full-load operation.
Reliability
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Machine operational data (duration of use and required service intervals) can be retrieved.
Maximum efficiency
Highly efficient, tried-and-tested burner technology.
Four-pole electric motor with three-piston axial pump.

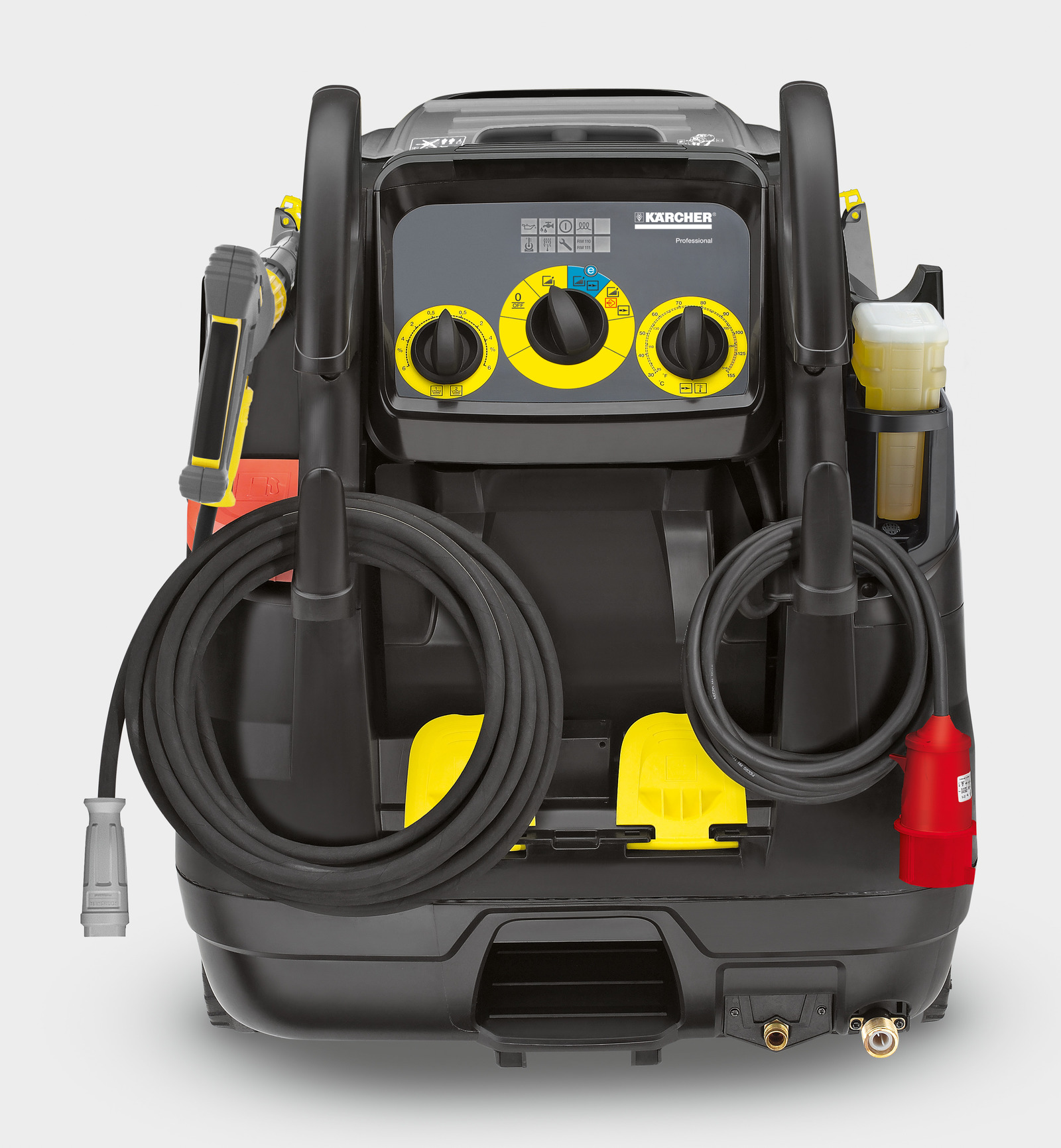

Storage
Spacious storage compartment, e.g. for cleaning agents, gloves or tools.
Within easy reach for left-handed/right-handed operators and ideal for two-spray lance operation.
Cleaning agent dosing unit
Precise dosing valve ensures low consumption.
Easy changeover between detergent tanks 1 and 2.
Rinsing takes place automatically in the 0 position.
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Equipment
Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Pressure cut-off
Optional two-spray lance operation
Pole reverse plug (3-phase)
Soft Damping System (SDS)
Service electronics
Two detergent tanks
Dry-running protection
Current type (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 600 - 1200
Working pressure (bar/MPa) 30 / 180 / 3 / 18
Max. temperature (supply 12C) (C) 80 - 155
Connection load (kW) 8,4
Heating oil or gas consumption, full load (kg/h) 7,7
Power cable (m) 5
Fuel tank (l) 25
Weight (kg) 175,1
Dimensions (L W H) (mm) 1330 x 750 x 1060
Specification
