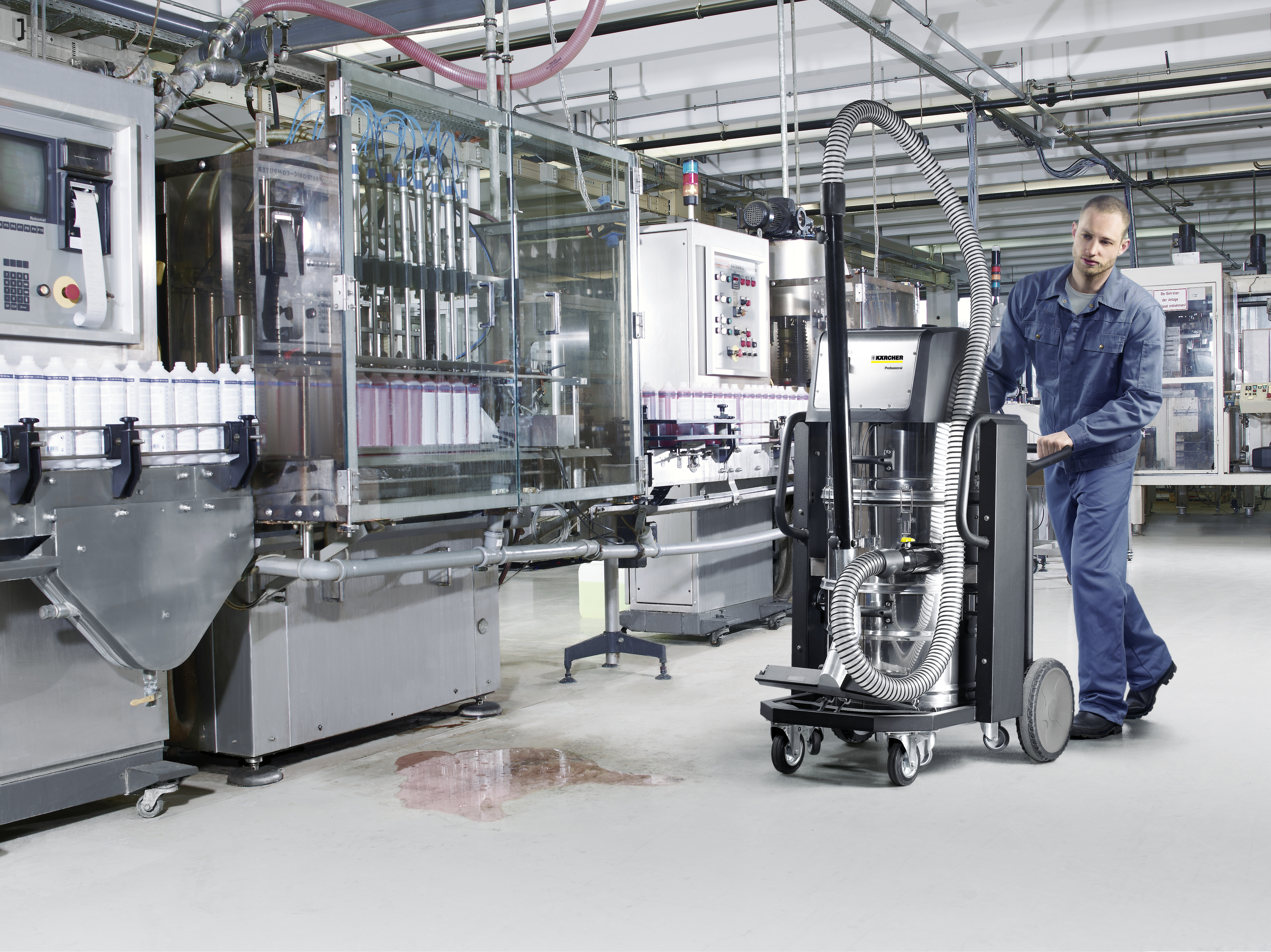

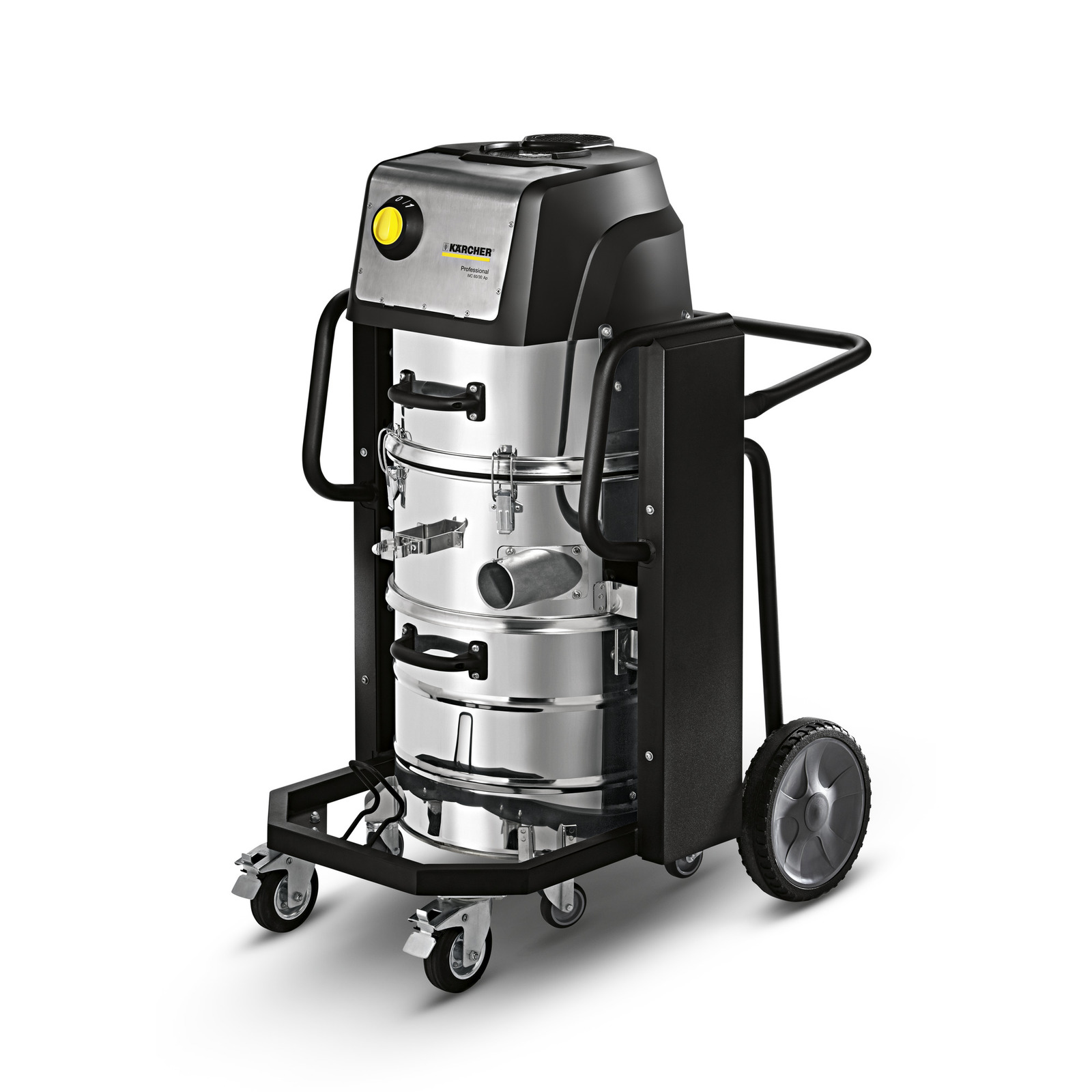

The compact IVC 60/30 Ap industrial vacuum is ideal for cleaning manufacturing areas and production machinery. With its wear-resistant side channel blower, the machine is also suitable for continuous use and is therefore ideal as a stationary extraction unit in production and packaging machines. Manual filter cleaning extends the filter life considerably.
Number of current phases (Ph) 3
Voltage (V) 400
Accessories in scope of delivery No
Air flow rate (l/s/m/h) 68 / 244,8
Vacuum (mbar/kPa) 286 / 28,6
Container capacity (l) 60
Rated input power during operation (kW) 3
Filter area (m) 1,9
Sound pressure level (dB(A)) 77
Nominal diameter of connection ID / 72
Nominal diameter of accessory ID / 72 / ID / 52 / ID / 42
Weight (kg) 95
Dimensions (L W H) (mm) 970 x 690 x 1240
Container material, stainless steel

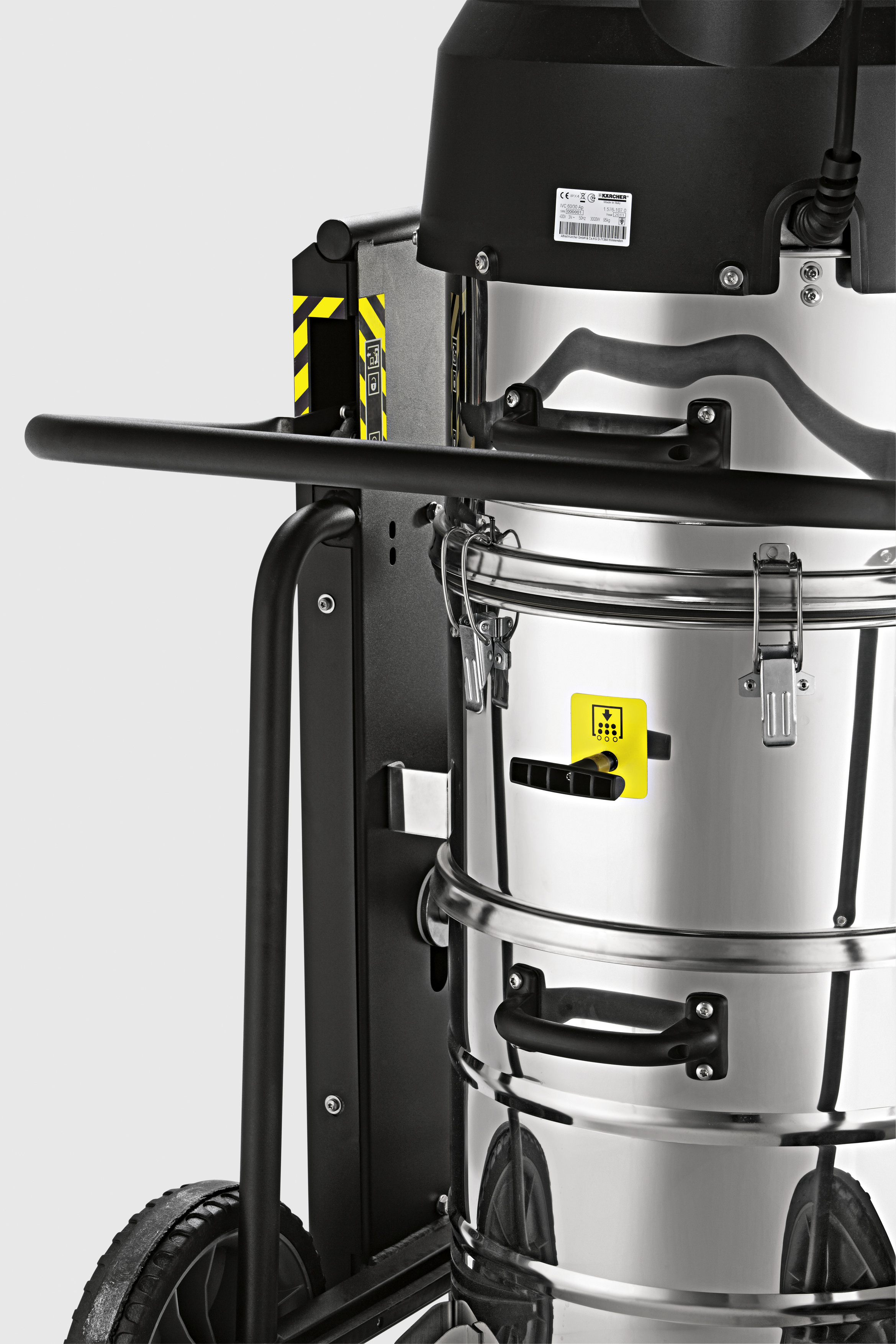

Container emptying, Set-down trolley
Filters, Flat pleated filter
Accessories in scope of delivery, No
Container in scope of delivery, 60 l

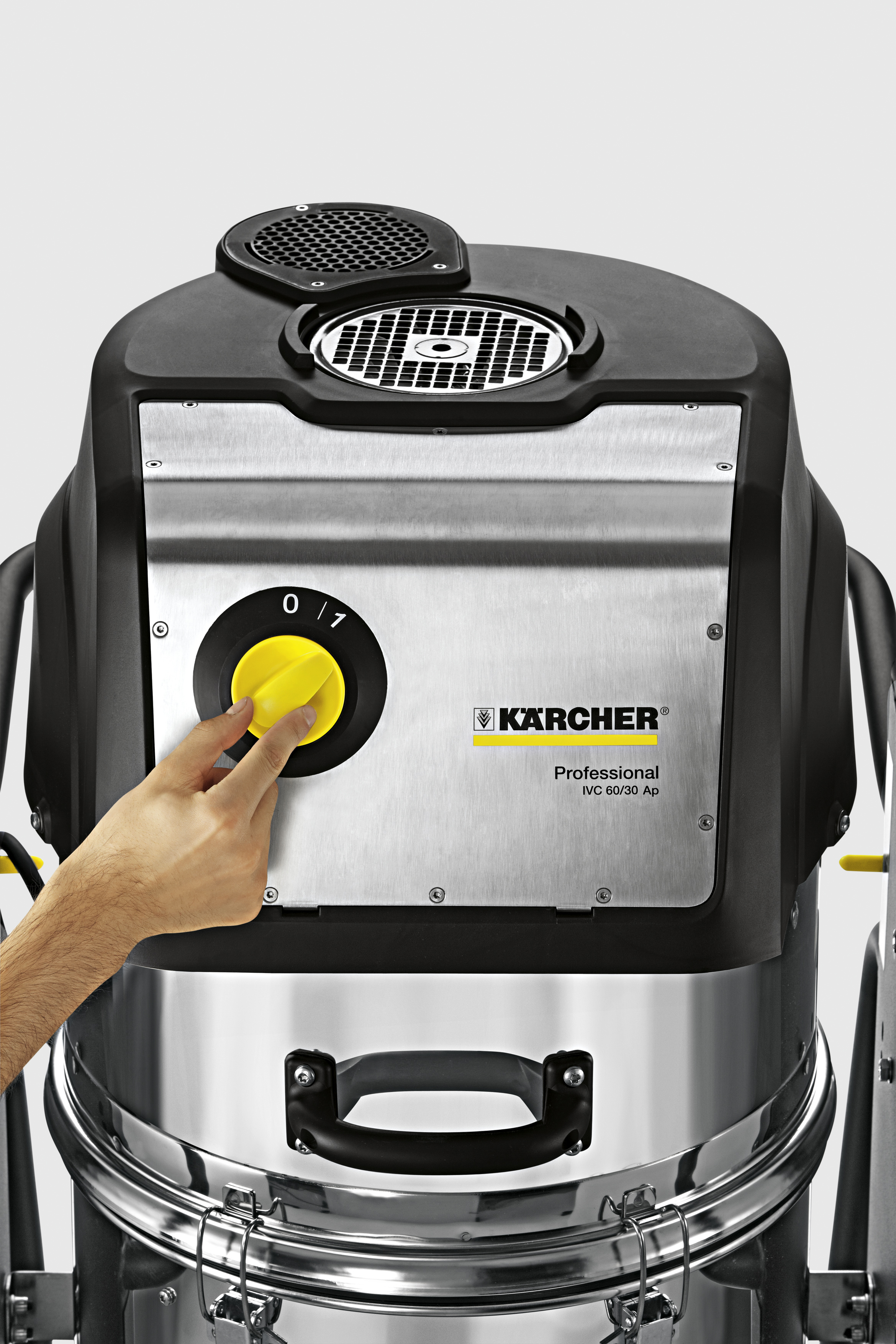

Filter cleaning, Manual
Flat pleated filter, Included in the scope of delivery
Specification
- Length (mm.) - 970
- Width (mm.) - 690
- Height (mm.) - 1240
- Weight netto (kg.) - 95
- Weight brutto (kg.) - 119.5
